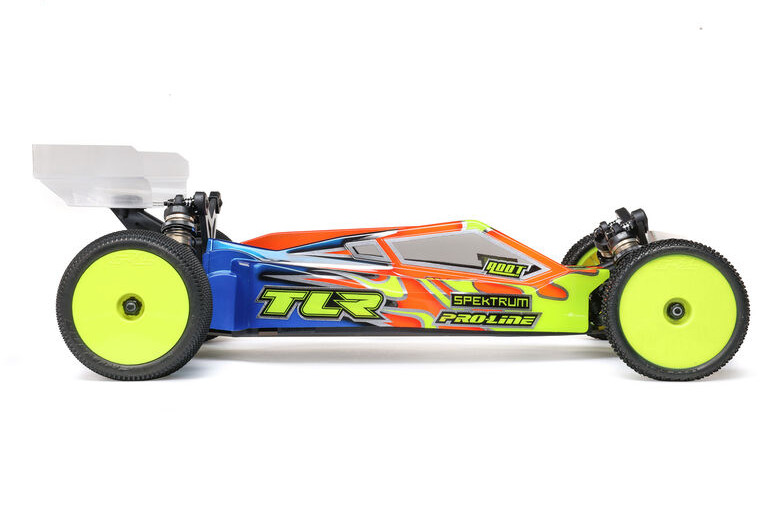

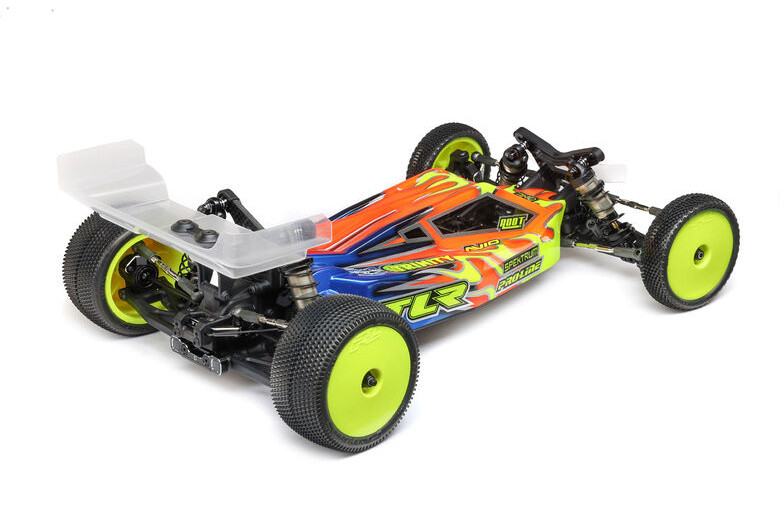

TLR 1/10 22X AC 2WD Buggy Race Kit, Astro/Carpet

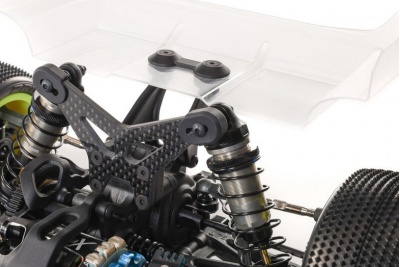

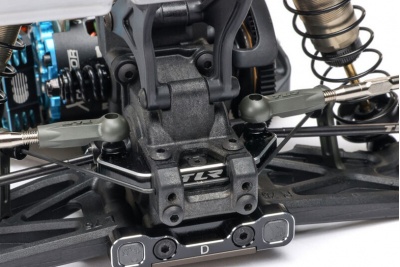

• Sway bars included
• New large-volume gear diff

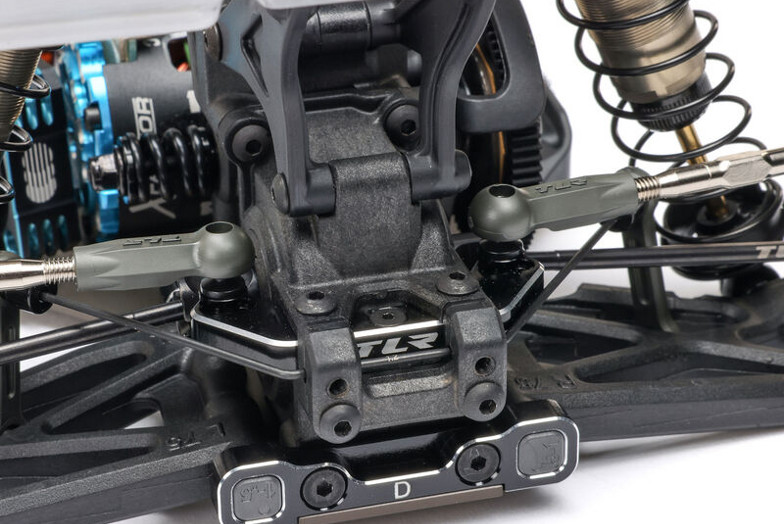

• Narrow king pin larger scrub offset spindle and carrier for increased steering response

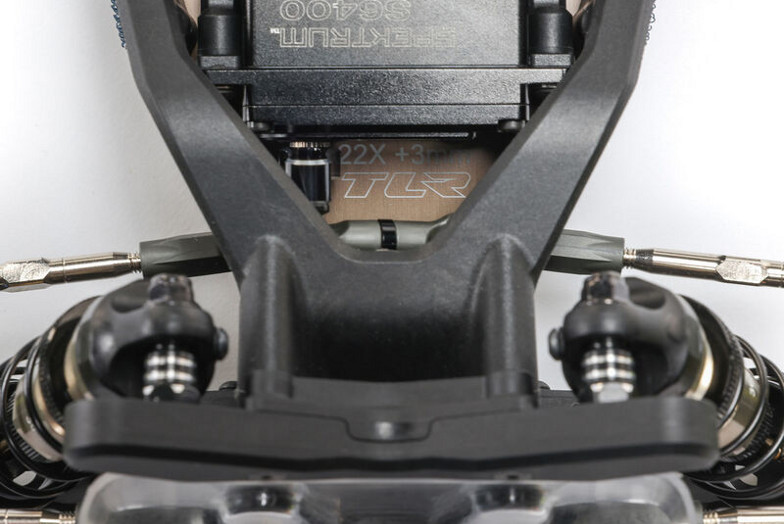

• +3mm Longer chassis for more stability on carpet and astro tracks
• Proper stiffness composites included for more consistency

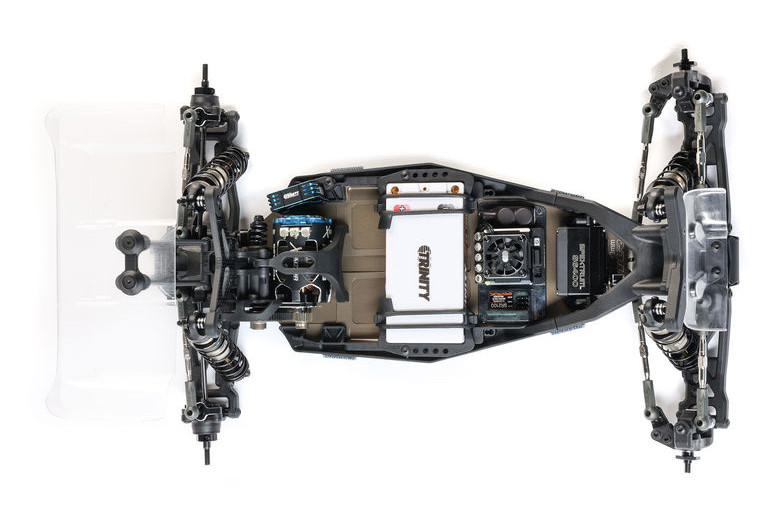

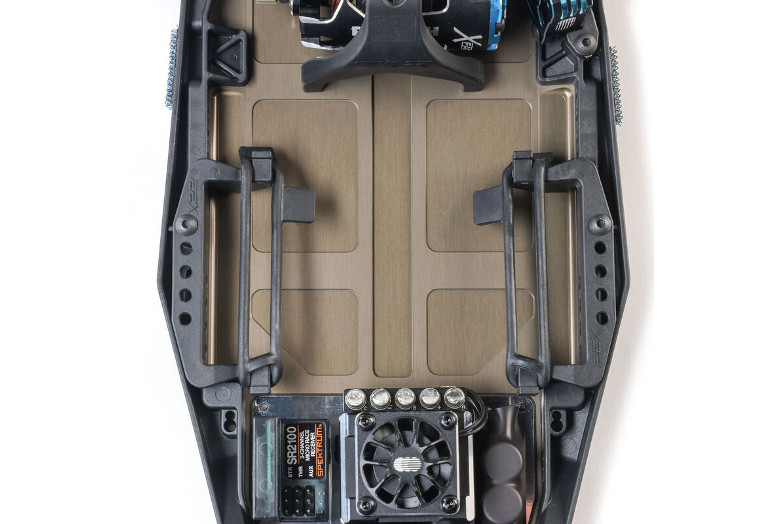

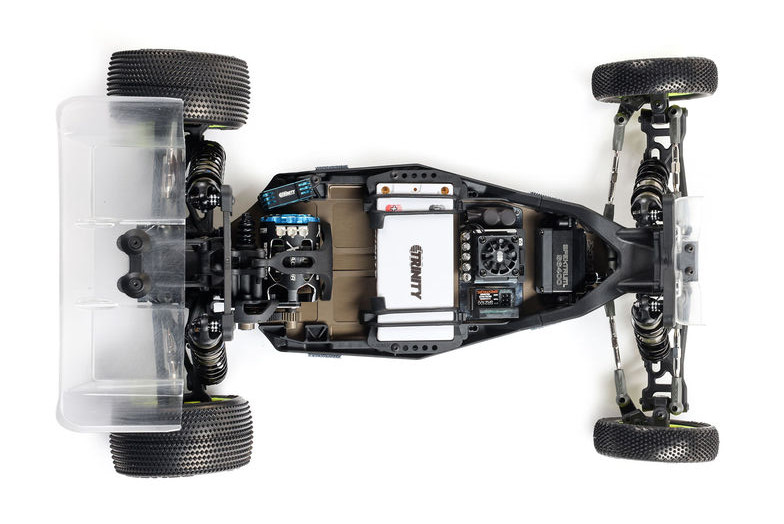

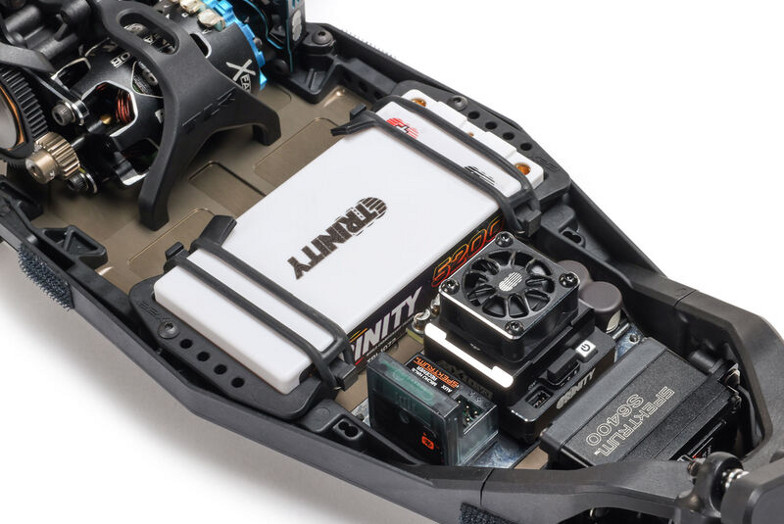

• Steel electronics tray provides weight where needed for higher grip surfaces

• Approximate Assembly Time: 3-5 Hours
• Ball Bearings: Full Set, Rubber Sealed Ball Bearings
• Body: 22 5.0 Cab Forward, 0.8mm
• Brakes: Controlled via Motor/ESC
• Chassis: 2mm Milled Plate, 7075-T6 Aluminium
• Completion Level: PRO Level Race Kit
• Differential: Ball Differential
• Drivetrain: 2WD
• Gear Pitch: 48-Pitch
• Height: 148mm
• Internal Gear Ratio: 2.43:1
• Length: 382mm
• Rear Track: 250mm
• Shock Type: 12mm Big Bore, Oil Filled
• Size/Scale: 1/10
• Spur Gear: 78, 72T
• Suspension: Stiffezel Front Suspension Arms, Soft Rear Suspension Arms
• Track: Front and Rear 249mm, distance from outer edges of tires measured side-to-side
• Vehicle Type: 2WD Dirt and Clay Racing Buggy

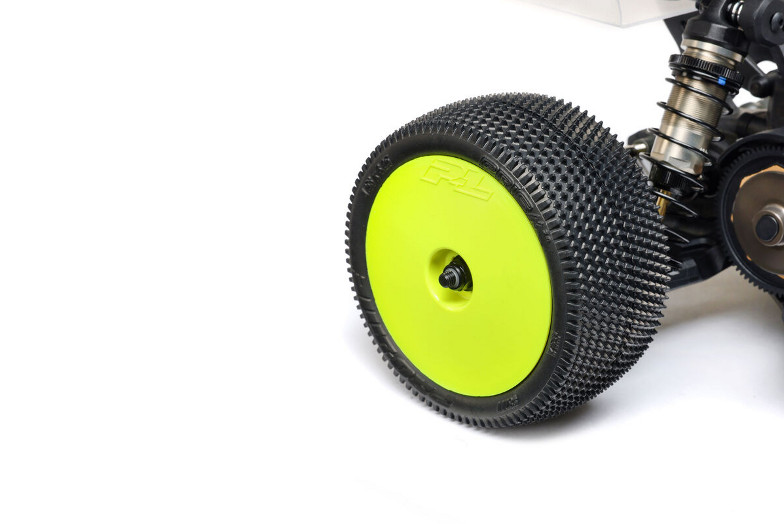

• Wheel Diameter: 2.2 in (56mm)
• Wheel Hex Size: 12mm
• Wheel Type: 22 Dish, 12mm Hex
• Wheelbase: 280mm
• Width: 249mm

• 1x Team Losi Racing 22X AC 1/10 Scale 2WD Race Buggy Kit
• 1x Pro-Line Sector 22X Body
• 1x Pro-Line Air Force 7” Wing
• 1x Pro-Line Front Wing
• 1x Product Manual

• 1x ESC
• 1x 540 Size Motor
• 1x 2S LiPo Shorty Battery
• 1x LiPo Battery Charger
• 1x Receiver
• 1x Transmitter
• 1x Servo
• 1x 48-Pitch Pinion Gear

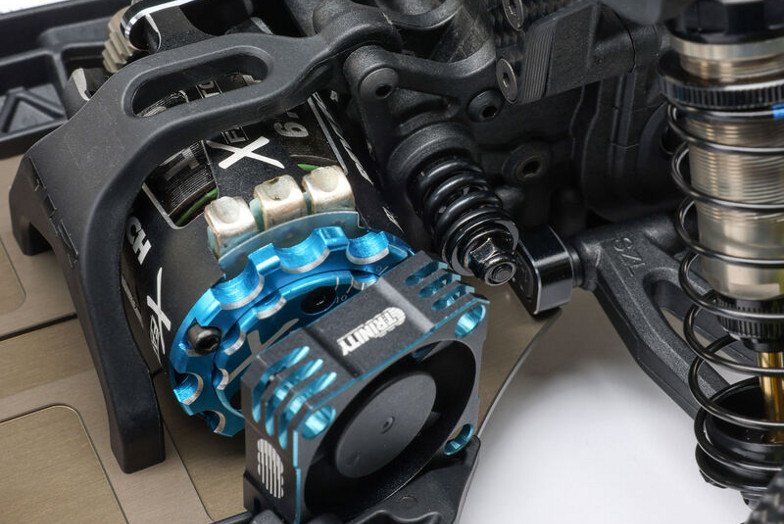

• 1x 30 x 30mm Motor Fan (Optional)
• 4x 2.2” Buggy Wheels (2WD Fronts, Buggy Rears)

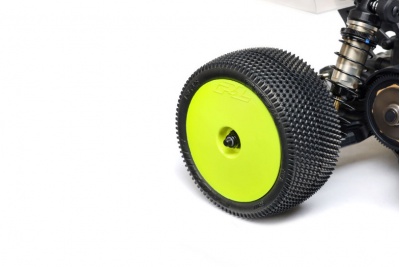

• 4x 2.2” Buggy Tires (2WD Fronts, Buggy Rears)
• Polycarbonate Paint

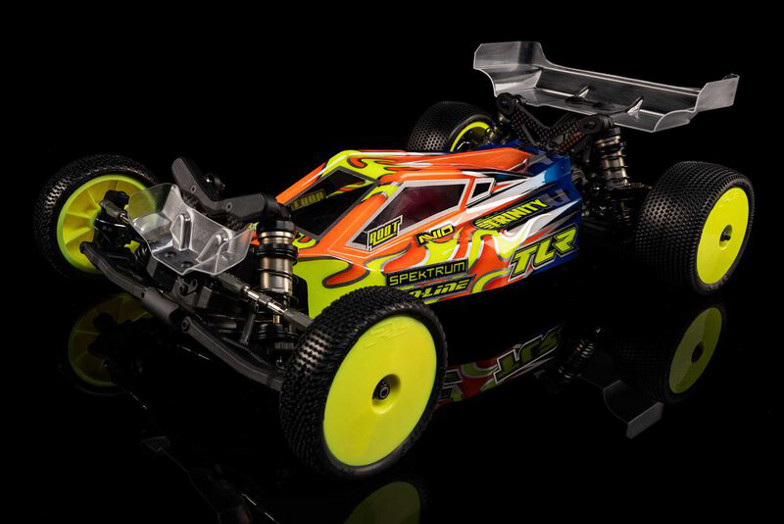

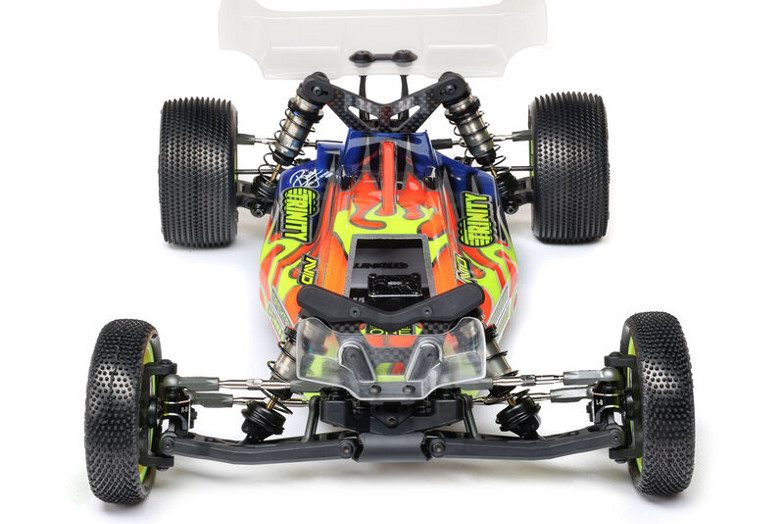

Team Losi Racing 1/10 22X AC 2WD RC Buggy Race Kit, Astro/Carpet Overview

In 2010, Team Losi Racing introduced the revolutionary 22 — a completely new 2WD platform that jump-started the electric buggy racing scene, launching a series of TLR 22 vehicles with top-level performance.

Now, a new era of domination begins with the 1/10 scale 22X AC 2WD Race Buggy Kit. TLR started with lessons learned from the World Championship-winning 22, and from years of further 22 platform development plus valuable racer feedback. The result is a brand new buggy design that's easier to maintain and comes optimized for astro and carpet tracks, with a ton of adjustability that makes it easier to drive faster on today's high-grip surfaces.

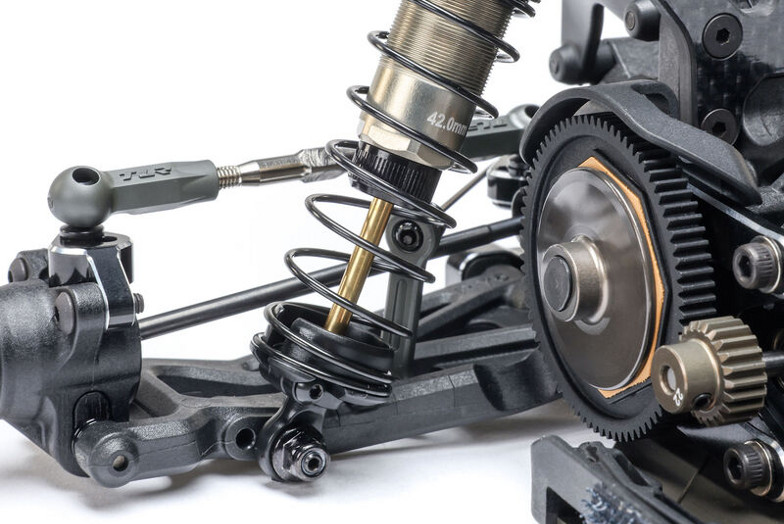

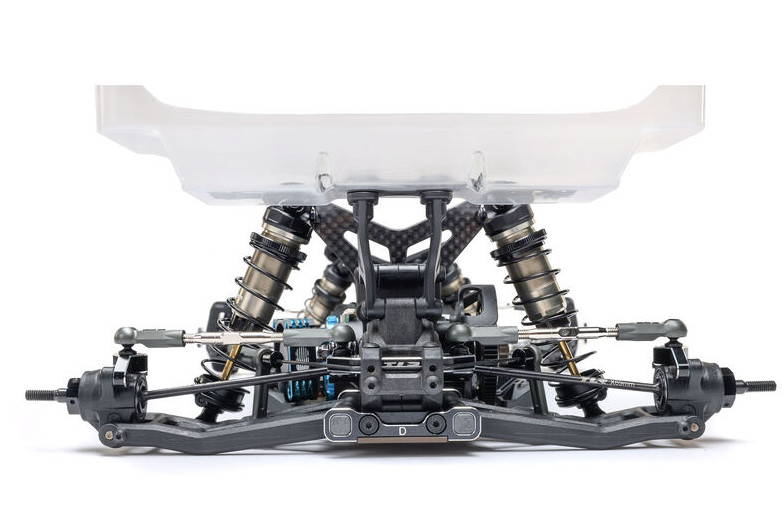

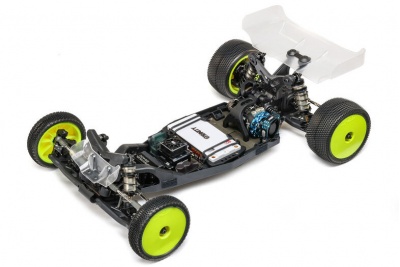

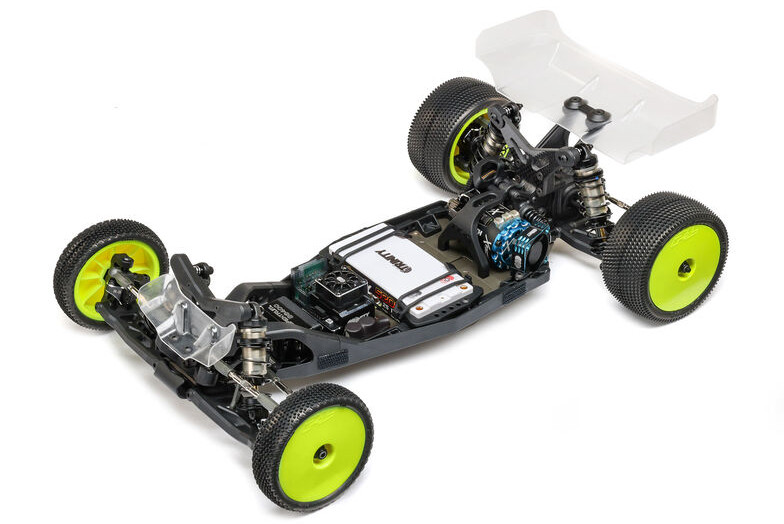

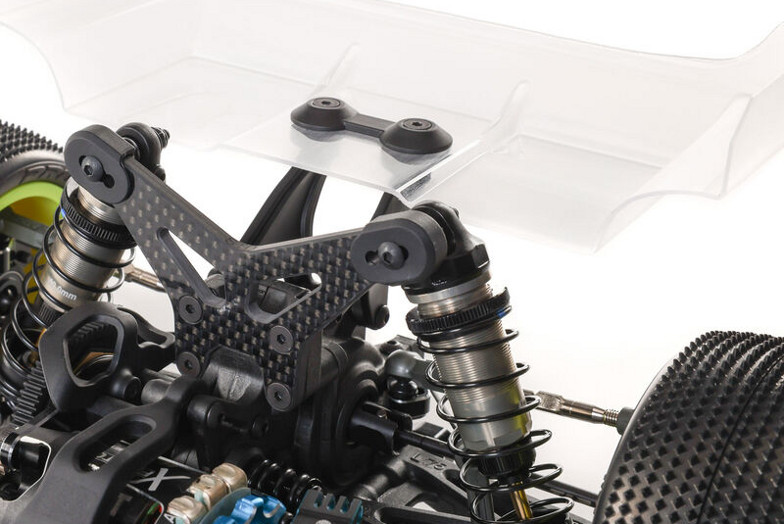

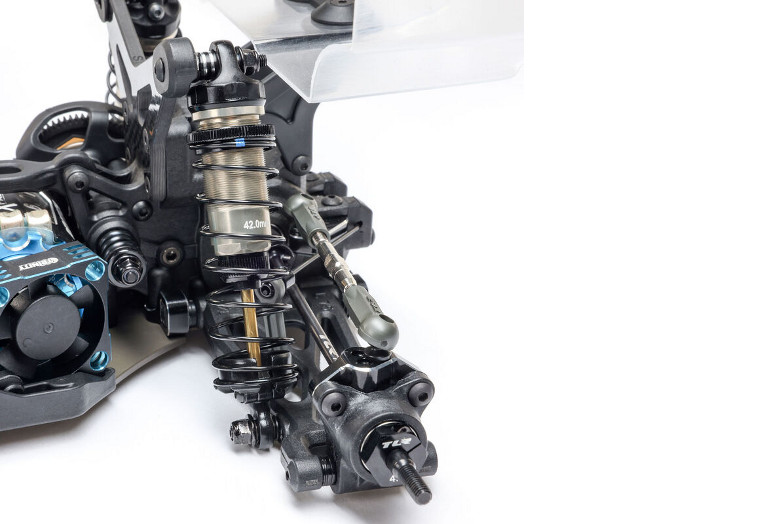

If you're ready for the podium, the 22X AC 2WD kit is equipped to take you there. Key improvements compared to the earlier TLR 2WD buggy designs include a hard-anodized 2mm 7075-T6 aluminum chassis that's lengthened and optimized for today's higher grip tracks, plus larger 13mm big-bore shocks with 13mm springs for plush landings and quick cornering.

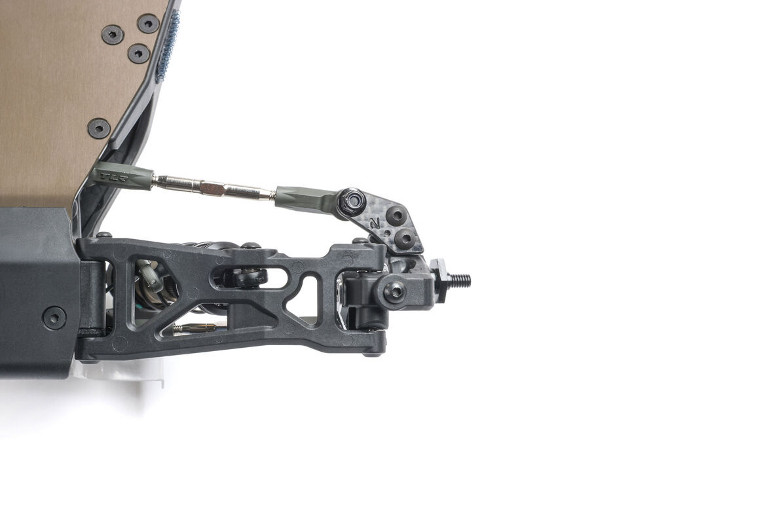

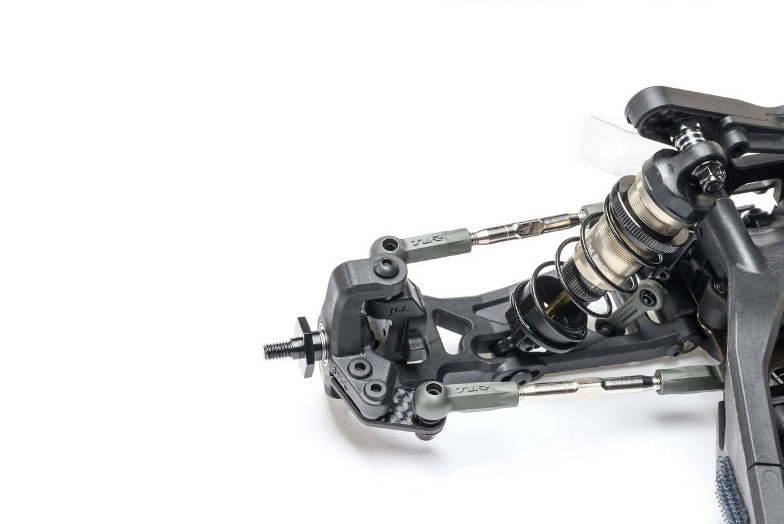

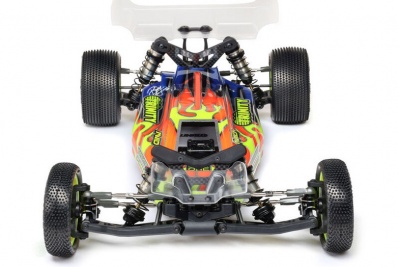

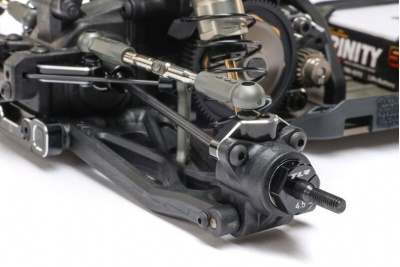

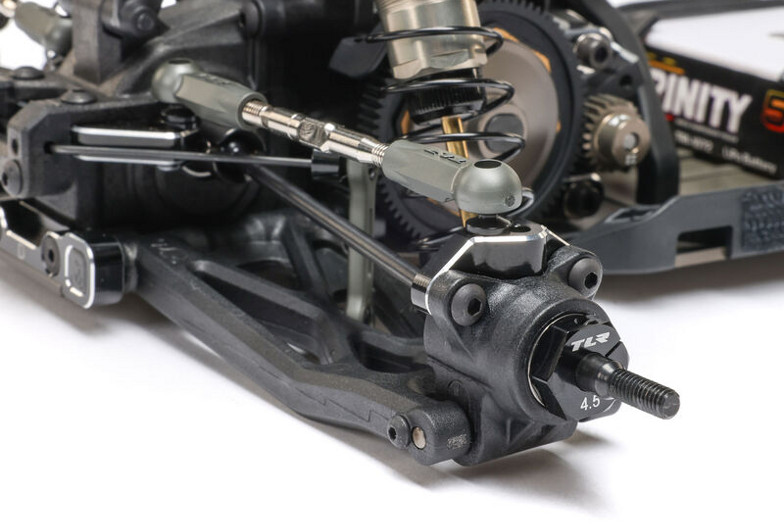

Two front caster block and spindle options let you tune the steering feel to what you want and need on different surfaces; options for wide or narrow king pin locations are available. The wide location provides a more linear feel and keeps the buggy flatter through the corners. The narrow king pin location provides the grip needed to be more aggressive on astro and carpet tracks.

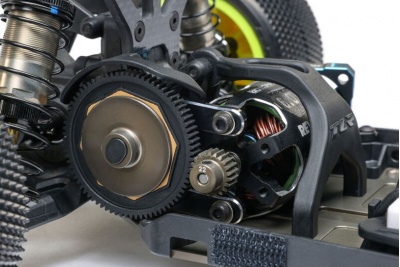

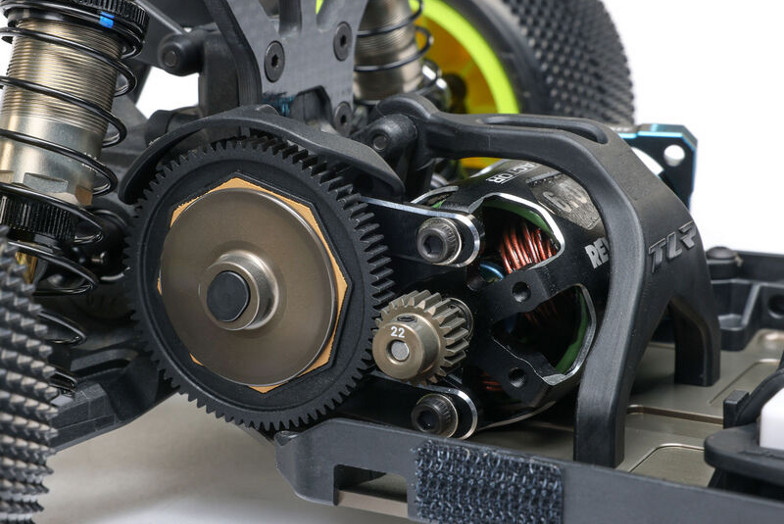

The TLR 22X AC 2WD kit also has a new laydown gearbox design with an easy-access differential and idler gear. You'll be able to maintain the differential and idler gear quickly without disassembling the entire gear box — a big advantage given that the suspension uses the gearbox for all of its mounting points.

TLR includes many option items with the 22X AC race kit to offer the maximum amount of tunability right out of the box. After all, the demands of 2WD electric racing have changed, as the tracks have changed from traditional loose-grip dirt to high-grip clay, carpet, and astroturf. With the TLR 22X AC, you can adapt to any track and be fast and successful anywhere.

• Availability: Can supply direct from importer
• Model: TLR-1234
• Manufacturer:
