Hitec
Hitec’s economically-priced RDX1 200 is a compact and versatile charger designed to speedily charge your packs and meet the diverse needs of the entire RC community.
Perfect for use at home or on the go, this state-of-the-art AC/ DC charger features a compact, durable design, user-friendly intuitive interface, and bright LCD screen. It is easy to configure for all common battery chemistries, while also ensuring safe and efficient charging. The RDX1 200 offers a full 100W of power when charging from 120VAC, and up to 200W with a DC supply. It also features multiple modes to help maximize performance of your batteries and their lifespan.
The RDX1 200 is a dependable, flexible charging solution, and a standout choice for its functionality, safety, and portability.
Features:
- Balance, Standard, Storage and Discharge Modes for All Lithium Battery Chemistries
- Terminal Voltage Control
- Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
- Capacity Cut-Off Limit
- Smart Ventilation Fan
- Built-in Power Supply Function for Powering Devices up to 27V @ 10A
Specifications:
- 100V – 240V AC Operating Voltage Range
- LiPo, LiFe & LiIon Cell Count: 1-6 Cells
- NiCd/NiMH Cell Count: 1-15 Cells
- Pb Lead-Acid Based Cell Count: 2-20V
- Charge Circuit Power: 100W AC / 200W DC
- Discharge Circuit Power: 5W
- Dimensions: 4.1 x 4.1 x 2.4 in.
- Weight: 0.75 lbs
IMPORTANT SAFETY NOTICE
Please read the manual and use the charger only as outlined in the instructions. NEVER leave the charger or any batteries unattended during operation and ensure you disconnect everything when finished. Always charge in a suitable environment (on a solid non flammable surface away from fire hazards). LiPo safety bags are also advisable when charging lithium polymer batteries and are compulsory when racing at NZRCA sanctioned meetings.

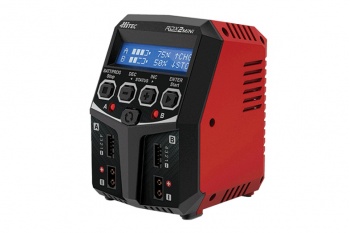

The sleekly-designed RDX2 Mini is a two-channel charger, featuring independent circuits which allow the user to charge two batteries simultaneously, regardless of chemistry or capacity. With a powerful, combined 100 watt charging output and 5A current, the RDX2 Mini offers the punch needed to charge 2-4 cell packs at an affordable price.
The convenient front-loading design has the balancing and XT60 ports readily accessible for ease of operation at your workshop, flying field or raceway. Additional features include AGM and Cold Charge Modes to safely and easily charge conventional lead-based and absorbed glass mat batteries in cold conditions.
Features:
- User-Friendly LCD Interface
- Stores 10 Different Battery Memory Charge/Discharge Profiles
- AGM and Cold Charge Modes
- Terminal Voltage Control
- Built-in Balance Connector
- Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
- Re-Peak Charge Mode and Delta-Peak Sensitivity For NiMH/NiCd Batteries
- Optional Temperature Sensor for NiCd/NiMH Charging
- Two (2) Built-in XT60 Connectors
- Smart Ventilation Fan
Specifications:
- AC Input: 100-240 Volts AC
- Charge Power: 100 Watts (2x 50 Watts)
- Charge Current Range: 0.1 – 5.0 Amps
- Discharge Power: N/A
- Current Drain for LiPo Balancing: 300mA per Cell
- NiCd/NiMH Battery Cell Count: 6 - 8 Cells
- LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
- Pb Battery Voltage: 6 - 12 Volts
- Dimensions: 90 x 100 x 127mm
- Weight: 50g
Package includes:
- RDX2 Mini Charger
- AC Cord
- Two (2) T-Type Connectors
Hitec RDX1 Mini Charger's sleekly-designed, compact AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including the new generation LiHV. With 6 amps of maximum charging current and 2 amps of discharging current, our RDX1 Mini is the next best way to stay charged with Hitec!
Features:
- User-Friendly LCD Interface
- Stores 10 Different Battery Memory Charge/Discharge Profiles
- Terminal Voltage Control
- Built-in Balance Connector (JST, XT)
- Cell Balancing While Discharging
- Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
- Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
- Optional Temperature Sensor for NiCd/NiMH Charging
- Built-in XT60 Connector
- Smart Ventilation Fan
Specifications:
- AC Input: 100-240 Volts AC
- Charge Power: 65 Watts
- Charge Current Range: 0.1 – 6.0 Amps
- Discharge Power: 10 Watts
- Discharge Current Range: 0.1 – 2.0 Amps
- Current Drain for LiPo Balancing: 200mA per Cell
- NiCd/NiMH Battery Cell Count: 6 - 8 Cells
- LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
- Pb Battery Voltage: 6 - 12 Volts
- Dimensions: 117 x 106 x 55mm
- Weight: 315g
