OS SPEED B2105 Piston/Liner/Rod set

piston and connecting rod are supplied assembled
$315.00  Inc Tax
Qty:
Print

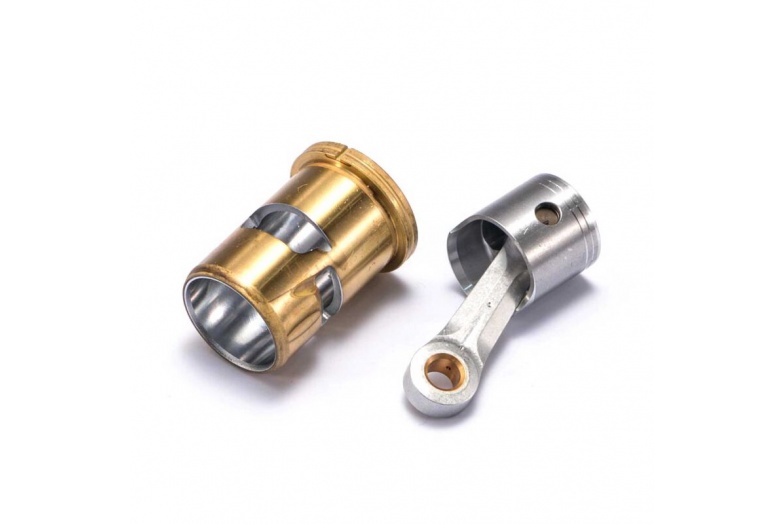

This is a genuine O.S. Speed cylinder liner and piston from OS SPEED for their B2105 Engine.

The piston pin, piston pin retainers and connecting rod are supplied assembled.


Note:  O.S. advise that after a major working part such as the piston and cylinder liner assembly is replaced, the complete running-in procedure should be repeated.

Key Features:

  • Genuine O.S. Speed replacement top end for the B2105
  • Part 4 in the O.S. Speed B2105 engine parts list (Built-up Parts Set C&P)
  • B2105 3-port cylinder liner
  • Supplied assembled

What's In The Box?

  • 1x Cylinder and Piston Assembly (2EK03000)
  • 1x Piston Pin (22016000)
  • 2x Piston Pin Retainers (2AP17000)
  • 1x Connecting Rod (22425003)


Technical Specifications:

FitsO.S. Speed B2105
Bore16.27mm
Stroke16.80mm
Liner Ports3
O.S. Part Number2EK03010





  • Availability: Can supply direct from importer
  • Model: OS 2EK03010
  • Manufacturer: OS Engines
