Hobbywing QuicRun Series 1080 Water Proof G2 Brushed ESC

Great for any 1/10 vehicle
$89.95  Inc Tax
Qty:
  • Out of Stock
Print

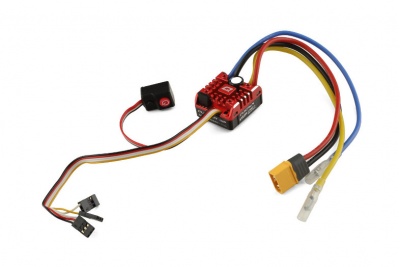

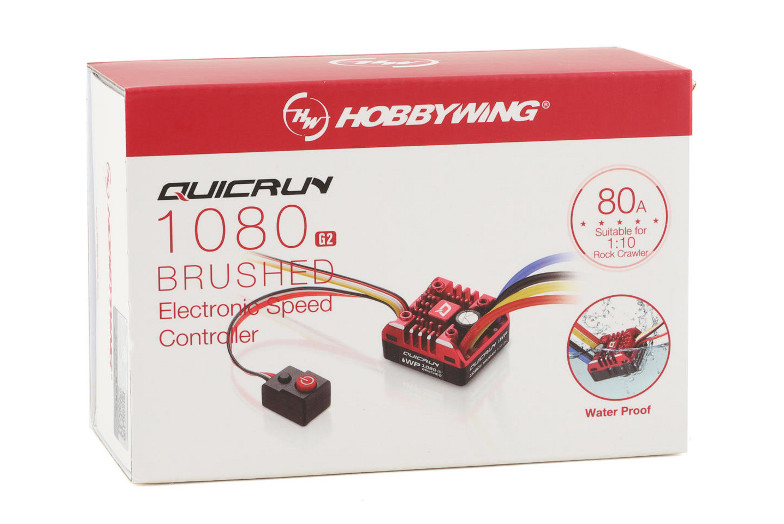

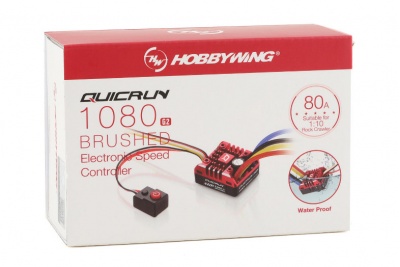

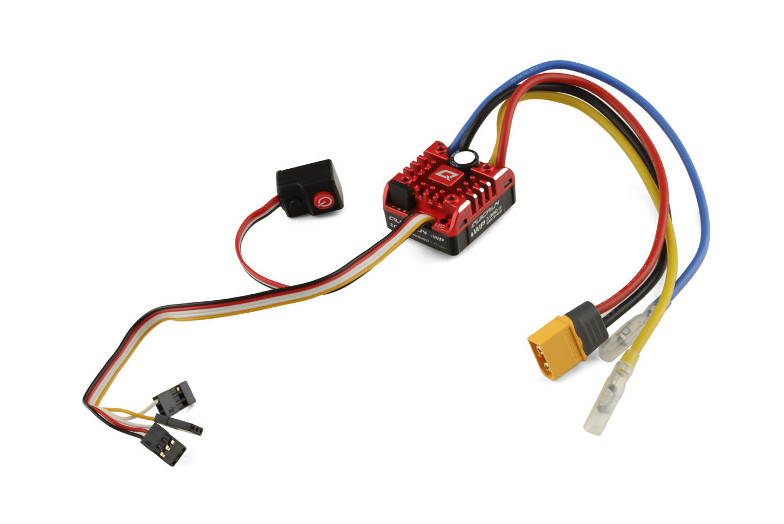

This is the QuicRun 80A WP-1080 G2 ESC from Hobbywing.

The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers but is equally a reliable, powerful option for other 1/10 brushed motor applications.

Features:
  • Fully Water-proof and dust-proof, suitable for all-weather races.
  • Small in size, with a built-in capacitor module.
  • Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
  • In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
  • Real-Time Adjustment of Drag Braking Force.
  • 15 programmable parameter items
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable
  • Freewheeling (DEO) capability
  • Drag brake rate in 9 levels (adjustable)
  • Electronic switch
  • Aluminum case for great heat dissipation
  • Great current endurance capability.
  • Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
  • Automatic throttle range calibration, easy to use.
  • Multiple protections:
  • Over Voltage Protection
  • Low voltage cut-off protection for battery
  • Over-heating protection
  • Throttle signal loss protection, and much more


Specifications:
  • Continuous / Peak Current: 80A/400A
  • Voltage Range: 2-3S Lipo or 5-9 NiMH
  • Cars Applicable:1/10 Touring Car / Buggy / SCT / Monster / Crawler
  • Battery: 2-3S LiPo or 5-9S NiMH
  • Size: 37.2 x 31.9 x 18.4mm
  • Weight: 70.2g including wire and connectors
  • Separate Programming Port
  • LED Program Box
  • PWM Frequency: Adjustable 1K/2K/4K/8K/16K
  • BEC Output 6V/7.4V @ 3A (switch mode)
  • Adjustable Reverse/Brake Force
  • LED program box supported
  • Brushed Motors (540/550 Series of Motors)


WP-1080 G2 ESC VS WP-1080 (G1)
  • BEC output can go up to 8.4V
  • Real-Time Adjustment of Drag Braking Force.
  • Real Car Mode
  • New Aluminum case
  • Availability: Out of Stock
  • Model: HBW 30120202
  • Manufacturer: Hobbywing
