Tamiya 1/10 R/C QUIRKHOPPER Kitset (GF-02)

gear-driven 4WD GF-02 chassis
$375.00  Inc Tax
Qty:
Print

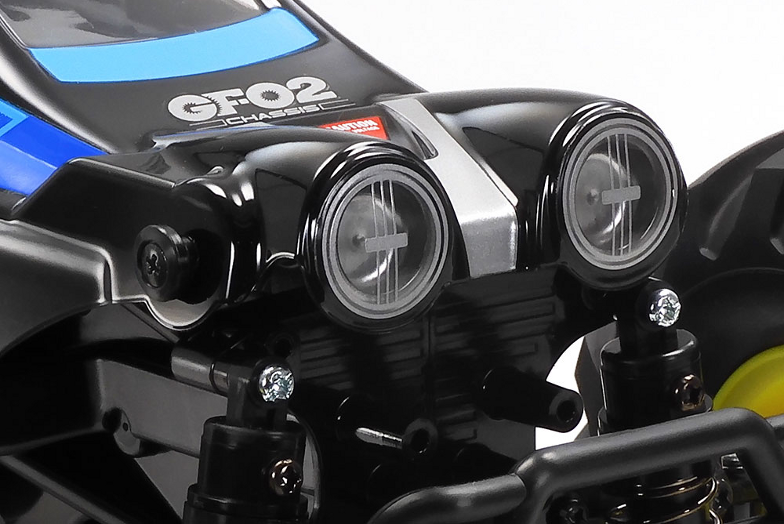

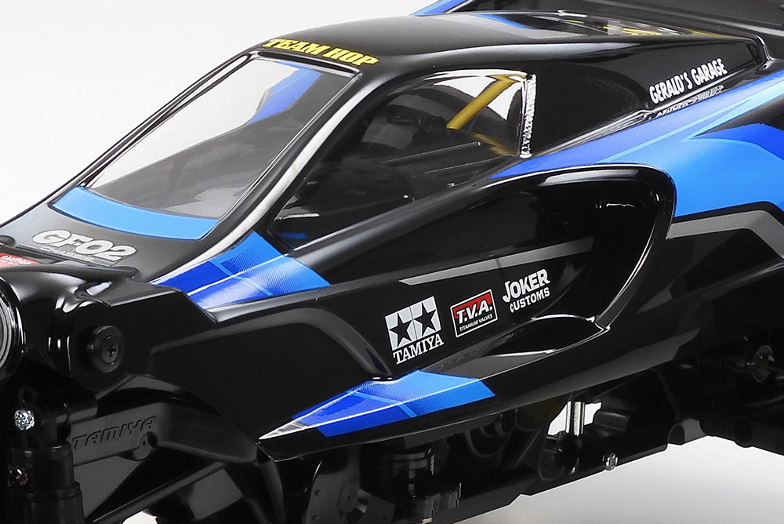

This R/C assembly kit is a unique model with a slim buggy body and big tires. The rigid and lightweight bug-inspired polycarbonate body has a distinctive style with a front face employing twin headlights, side air intakes and a rear wing that flows into the body sides. Stickers feature designs such as name logos and blue graphics which are perfect for use with a black painted body. The gear-driven 4WD GF-02 chassis utilizes 4-wheel double wishbone suspension and is fitted with 123mm large diameter tires, to ensure powerful performance both on- and off- road.


GF-02 Chassis

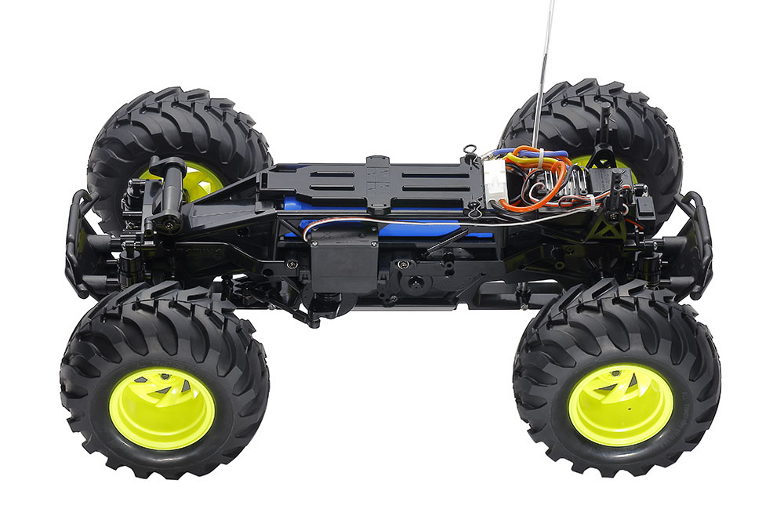

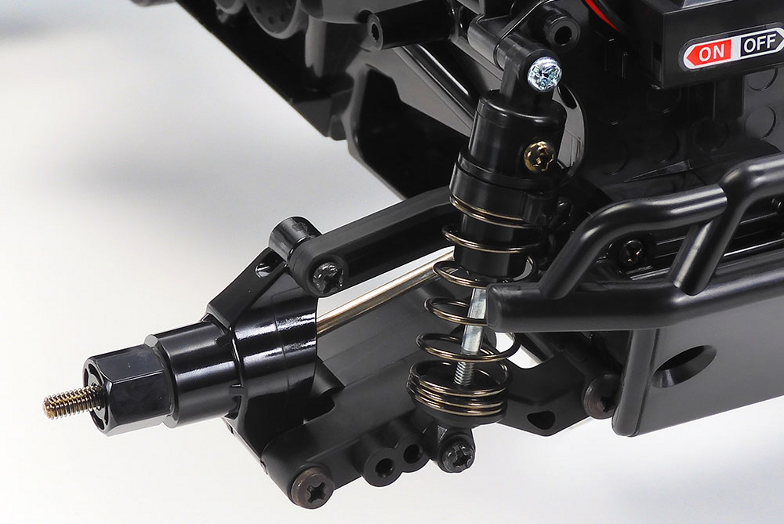

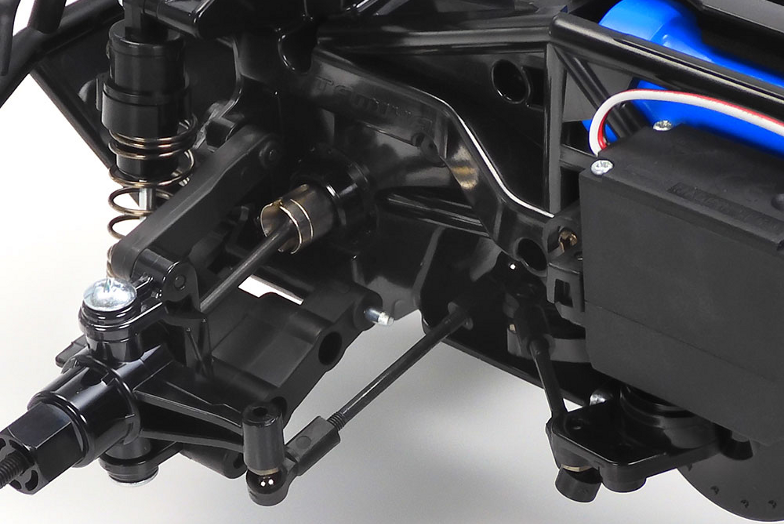

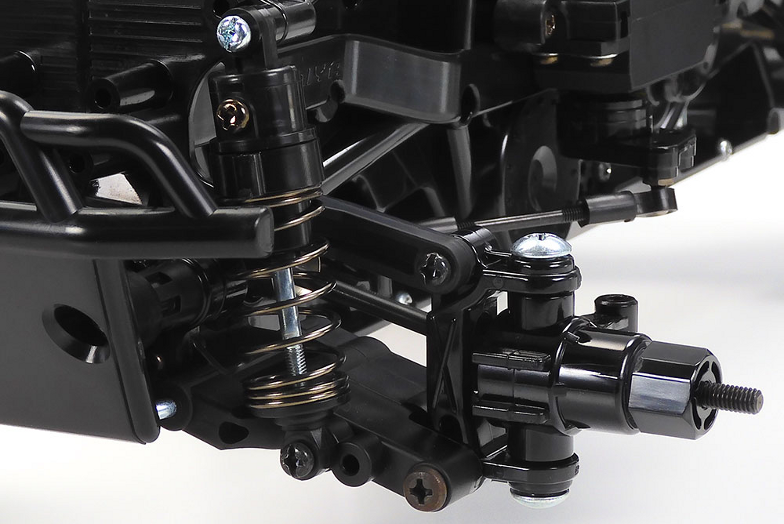

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame is inspired by ladder/pipe layouts and features integrated sealed gearboxes which help keep dust and debris out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering linkage uses identical-length tie-rods. Fluorescent yellow one-piece deep rim wheels are paired with 123mm diameter semi-pneumatic tires.



Specifications:
Length:400mm
Width:280mm
Height:175mm
Wheelbase:
267mm
Transmission type:Gear-driven 4WD
Suspension:4-wheel independent double wishbone
Tread: 222mm (front & rear)
Tire Width/Diameter:
60mm/123mm (front & rear)
Electronic Speed Controller: HobbyWing THW 1060 Brushed Motor ESC (2-3S) (Included)
Motor:Type 540 motor (Included)
Gear Ratio:18.03:1


Required Items (Sold Separately)
  • Transmitter/Receiver
  • Servo
  • Battery
  • Charger
  • AA Batteries for Transmitter

  • Availability: In Stock
  • Model: TAM 58756
  • Manufacturer: Tamiya
