Kyosho 1/12 EP 4WD Fantom PZF T-33 Retro Kit

1/12 4wd pan car
$599.96  Inc Tax
Qty:
Print

Legendary hybrid 1/12 racer with 4WD & 3P suspension Arrives as a kit after more than 30 years!

In the 1980s, 1/12 scale electric on-road racing was defined by fierce competition between 4WD models with ladder chains and agile 2WD cars with 3-point (3P) suspension. Kyosho’s Phantom EP-4WD dominated on both temporary parking-lot tracks and permanent asphalt circuits, while the rear 2WD Plazma series leveraged its lightweight design and simple drivetrain to excel where battery efficiency was key.

From this competitive era emerged a hybrid — the Plazma Phantom — which combined the Plazma’s main chassis and rear suspension with the Phantom’s drivetrain. Piloted by Kyosho works drivers, it blended 4WD traction with 3P suspension adaptability to deliver outstanding race results. But no kit was ever sold, leaving enthusiasts to build conversions from individual parts. Now, decades later, the wait is over. The Phantom PZF T-33 brings the Plazma Phantom to market as a kit for the first time. More than just a parts combination, the Phantom PZF T-33 features newly developed components for performance beyond what was possible in the ’80s. The quick-handling T-33 body also returns, expanding the body lineup.

Compared to building a Plazma Phantom from separate re-releases, the Phantom PZF delivers better cost efficiency and puts a true works-spec machine within reach. Now enhanced with modern refinements for even greater performance!


Key Features:
  • Kyosho Vintage Series No.19 is the first full-kit release of the special 4WD Plazma + Phantom model that was popular in the late 1980s.
  • Ladder-chain 4WD delivers high-level traction even on low-grip surfaces.

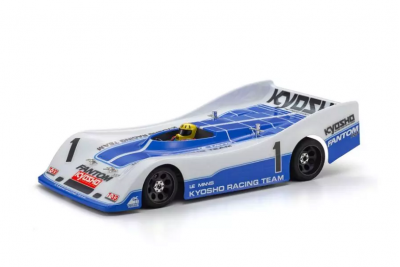

  • Includes reproduction of the T33 body, renowned for its sharp handling. Body is also compatible with existing Phantom & Plazma series.

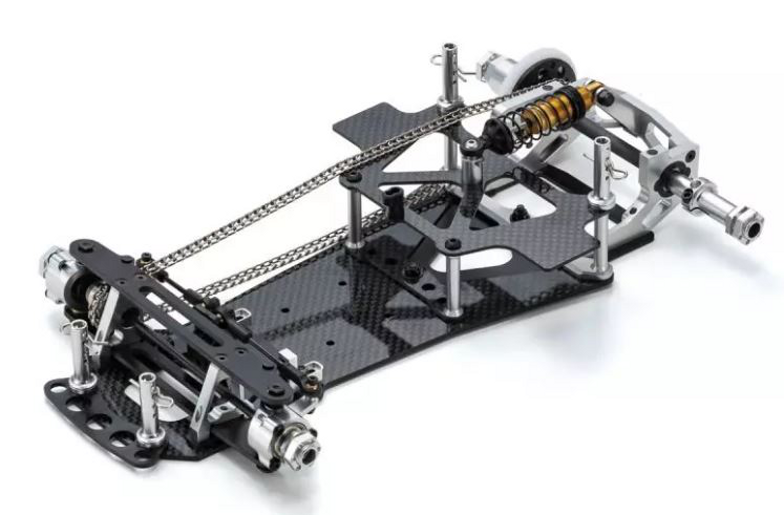

  • High-rigidity carbon main chassis and upper plate are paired with an FRP rear A-bar with optimal flex for enhanced tire grip.
  • Newly developed rear A-bar joints with ball-connect design.
  • 1.5 mm thick spacers for the front axle mount allow adjustable ride height.
  • Kingpin coil-type front suspension absorbs vibrations from surface gaps for optimal front tire traction.
  • Tires come pre-mounted and trued on black wheels, eliminating the need for tire-setting.
  • Dial-adjustable oil shock allow easy spring tension adjustments.

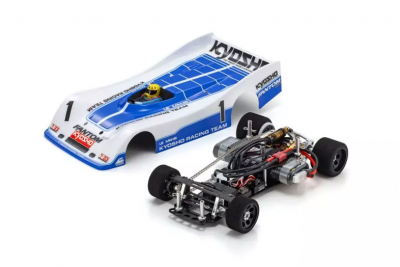

  • Unassembled kit includes pre-mounted front and rear tires and an unpainted body.

Technical Specifications:
  • Length 353mm
  • Width 172mm
  • Height 86mm
  • Wheelbase 201mm - 202mm (Adjustable)
  • Tread (F/R) 137mm / 133mm
  • Tires (F/R) 48×23mm / 53×35mm
  • Motor 540 class size (sold separately)
  • Weight 900g approx
  • Gear ratio 3.38:1

Kit Includes:
  • Chassis kit
  • Adhesive shaped tire
  • Unpainted body
  • Decal
  • Wheel wrench（12/4.0）
  • 5.5/5.0wrench
  • Hexagonal wrench
  • Shock wrench
  • Shock oil
  • Ball differential grease

Required for Complete:
  • Radio transmitter with 2 channel, 1-servo (Receiver size: Max 37x30x16.5mm / Servo size: Max 37x16.5x30mm )
  • 1 Electronic speed controller (ESC size：38x31x23mm)
  • 540 Class Motor
  • Battery for chassis (Battery size：138x48x24.5mm)
  • Batteries for transmitter
  • Charger for Battery
  • Paint for body
  • Availability: In Stock
  • Model: KYO 30639B
  • Manufacturer: Kyosho
